Linear motion shale shaker-First stage solids control equipment

Linear motion shale shaker is one kinds of drilling shale shaker in drilling solids control system.KOSUN ,a solids control equipment manufacturer, can supply linear motion shale shaker for sale.

KOSUN Linear motion shale shaker structure

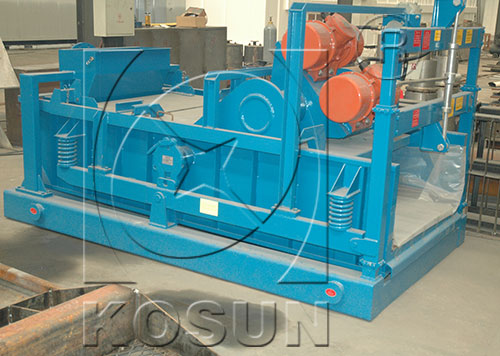

KOSUN QZS series linear motion shale shaker is an solids control equipment with welded structure. Vibration motor & screen plate base are installed into screen basket with special parts. Screen basket is fixed on the adjustment beam. At each of the four vertexes of the screen basket put a vibration damping spring, which can prevent the adjoining parts and devices from being affected by the vibration. Mud returned from the well or cuttings to be treated will flow into the linear motion shale shaker via the feeder.

Linear motion shake shaker in solids control system

In drilling fluids solids control system,shale shaker is the first stage solids control equipment to remove cuttings with diameter above 75μm brought from the drilling well and leave the liquid with smaller particles into mud tanks below, which will flow into drilling mud cleaner.

KOSUN Linear motion shale shaker advantage

Linear motion shale shaker is especially effective while drilling top-hole sections where heavy and high-volume solids are usually encountered. During the interval,linear motion shale shaker may generate powerful G-forces and its effective vibrating motion can quickly remove the dense solids from screens and particles from wells. KOSUN is a professional solids control equipment manufacturer in China and supply shale shaker, mud cleaner,decanter centrifuge,mud desilter cleaner ,drilling mud desander,mud tank,centrifugal pump,screw pump,etc.

Drilling fluid solids control system

Drilling fluid solids control system used in drilling rig to separate the solids in the drilling fluids that are crushed by the drill bits and carried out of the well surface. Normally solid control system is consist of mud tank, shale shaker, vacuum degasser, desander, desilter, decanter centrifuge,etc. Shale shaker is used to separate the big solids with diameter above 75μm, and 45~74μm for drilling mud desander, and 15~44μm for mud desilter cleaner. Sometimes desander & desilter are combined as high volume mud cleaner. When air enters into the drilling fluids, vacuum degasser is used to separate the air. If no air in the mud, the vacuum degasser would work as a big mud agitator. All these equipments are mounted on the top of the mud tank. After separating the solids, the clean mud would be pumped into the borehole again.

If you are interested in linear motion shale shaker or other solids control equipment, you can contact us online!!
